Easy to assemble and without any tools.

PIXLIP GO was designed to be easy to transport and set up. Thanks to our unique connector system, tool-free assembly is possible within minutes without any prior knowledge. No specialists are needed - simply assemble PIXLIP GO yourself.

Bright, fully integrated LED module

Our Pixlip GO LED profiles feature an integrated LED module. With no timeconsuming LED assembly needed, you can set up a PIXLIP GO LIGHTBOX in just a few minutes. Thanks to the high radiance and color reproduction, your print will shine with an unprecedented brilliance.

Easy to transport

Our PIXLIP GO LIGHTBOXES are provided in compact bags with shoulder straps, ensuring comfortable and easy transport. Their very low weight makes them effortless to carry. Due to the bags compact dimensions, PIXLIP GO stands as the first illuminated wall system that can be easily transported in cars.

Modular system that can grow

In developing PIXLIP GO, we made sure that our LIGHTBOXES consist of as few components as possible. This allowed us to achieve maximum modularity. If you already own several LIGHTBOXES, you can connect them to each other, combine them into a continuous LIGHTBOX, or even build LIGHTBOX in sizes that we do not offer by default. Let your creativity run wild.

Expand your lightbox with additional components

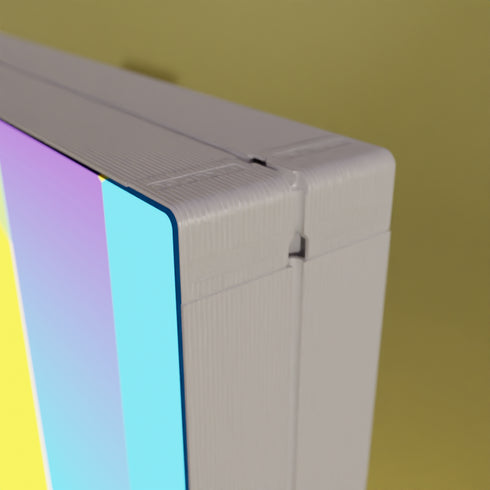

Our PIXLIP GO LIGHTBOXES are equipped with a groove system all around. This groove allows you to connect multiple frames, mount feet and attach counter plates, or add accessories without the need for tools in just a few seconds. This way, you can customize your PIXLIP GO LIGHTBOX exactly to your needs.

DESIGN YOUR OWN EXHIBITION STAND!

The PIXLIP GO CONFIGURATOR creates your booth-stand within minutes.

Additional PIXLIP GO Components

Technical Specifications

Product Size

Length: 1000 mm
Width: 2500 mm
Height: 150 mm

Packaging 1 Size

Length: 1200 mm
Width: 220 mm
Height: 425 mm
Weight: 11,2 kg

Materials

Frames: Pixlip GO frames are made of ABS plastic with a V0 fire safety certification
Prints: Pixlip GO Prints bestehen aus mit UV oder Sublimation bedrucktem Samba-Green
Color: RAL 9010, pure white

Electronics

Input voltage: 110 - 230V AC
LED voltage 24V DC
Power consumption: Approx. 27W/sqm (27W per LED module)
Suitable for outdoor: No

LED data

Light temperature: 6700K
Lumen: 2320 lm per LED
CRI: 80

What's in the box?

NUMBER: INDIVIDUAL PARTS:
4x PIXLIP GO profile 1150mm
2x PIXLIP GO profile with LED Module 900mm
4x PIXLIP GO corner connector
2x PIXLIP GO foot plate
1x PIXLIP GO strut 900mm
2x PIXLIP GO strut holder
2x PIXLIP GO system connector top
1x PIXLIP GO system connector step
8x PIXLIP GO printclip
6x PIXLIP GO sealing cap
1x  PIXLIP GO Power supply unit 120W, 24V
1x PIXLIP EU plug
2x PIXLIP GO bag

FAQs

What are the advantages of PIXLIP GO?

Our PIXLIP GO system is especially perfect for small to medium-sized mobile trade show booths, thanks to four key features:

  • PIXLIP illuminates. With the use of LEDs, we make your message shine. You'll get significantly more attention than with conventional systems.
  • Thanks to its lightweight and very compact carrying bags, entire trade show booths can be transported in cars.
  • The plug-in mechanism of the frames makes the setup completely tool-free and unrivaled in speed.
  • With our PIXLIP GO configurator, trade show booths can be created in seconds without any prior knowledge.
PIXLIP products, with their versatile combination options and simple textile swap feature, boast an extended lifespan. They offer repeated use across a range of events, from building trade show booths to designing store layouts.

What types of PIXLIP GO lightboxes are available?

Our PIXLIP GO system is perfect for small to medium-sized mobile exhibition stands, especially thanks to 3 features:

Due to the low weight and the very compact transport bags, entire exhibition stands can be transported even in passenger cars.

Due to the plug-in mechanism of the light frames, the assembly is completely tool-free and unrivalled fast.

And with our PIXLIP GO configurator, exhibition stands can be put together online in seconds without any prior knowledge.

What is the depth of the PIXLIP GO LIGHTBOX?

Our PIXLIP GO lightbox always has a construction depth of 150mm.

What color is the PIXLIP GO frame?

Our PIXLIP GO frames are basically made of white ABS to guarantee perfect illumination inside

With which electrical voltage do the LEDs run?

The internal voltage of the frame is 24V DC

What is the power consumption of the PIXLIP GO LIGHTBOX?

Our GO lightbox has a power consumption of about 2.5W per square foot.

What is the light temperature of the GO LIGHTBOX?

The light temperature of our LEDs is 6500k. This allows us to guarantee an extremely high color fidelity of your prints.

How bright is the PIXLIP GO system?

The luminous flux (lumen) of our PIXLIP GO LEDs is 2320lm. This results in a luminous flux of approx. 2320lm per square meter.

What is the color rendering (CRI/Ra value) of the PIXLIP GO LEDs?

The CRI/Ra value for our GO LEDs is 80.

Is it possible to assemble the walls in a larger size?

The sizes we offer guarantee an optimal mix of easy transport, stability, and perfect illumination. However, we also want to encourage our customers to view PIXLIP GO as a modular system where creativity knows no bounds. Multiple frames can be combined into completely new sizes, and frames can be designed that far exceed our offered 3-meter length. This way, you can showcase your advertising message in a continually new light.

How big are the transport bags?

Our GO BAG is available in 2 sizes:

1x 200 (180mm x 1040mm x 405mm").

1x 250 (180mm x 1180mm x 405mm).

Do the LIGHTBOXES need to stand on a specific floor?

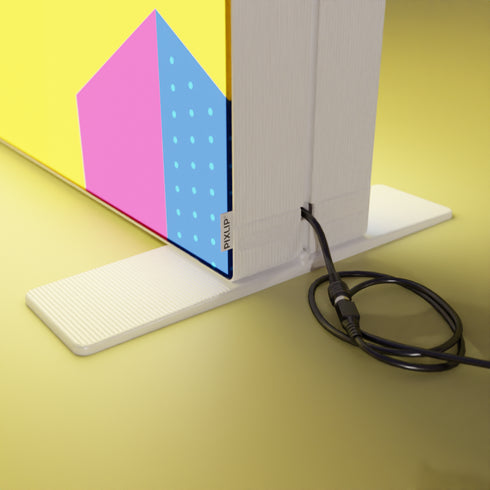

Feet on both sides are standardly included for the PIXLIP GO lightboxes. The ground must be level to ensure stability.
