Easy to assemble and without any tools.

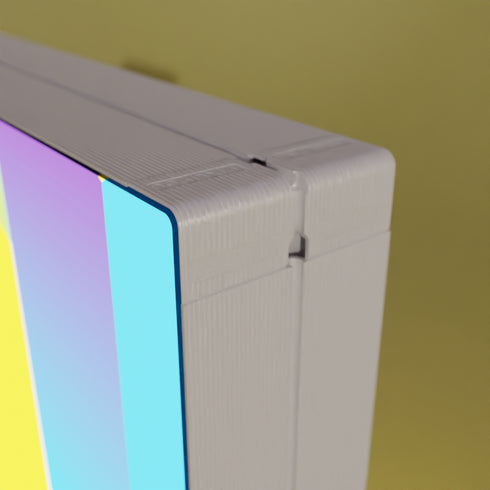

PIXLIP GO was designed to be easy to transport and set up. Thanks to our unique connector system, tool-free assembly is possible within minutes without any prior knowledge. No specialists are needed - simply assemble PIXLIP GO yourself.

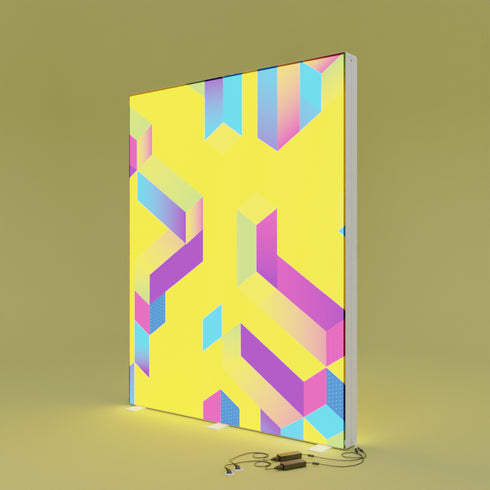

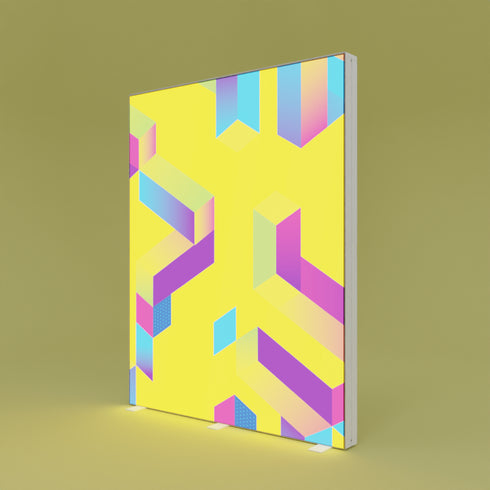

Bright, fully integrated LED module
Our Pixlip GO LED profiles feature an integrated LED module. With no timeconsuming LED assembly needed, you can set up a PIXLIP GO LIGHTBOX in just a few minutes. Thanks to the high radiance and color reproduction, your print will shine with an unprecedented brilliance.
Easy to transport
Our PIXLIP GO LIGHTBOXES are provided in compact bags with shoulder straps, ensuring comfortable and easy transport. Their very low weight makes them effortless to carry. Due to the bags compact dimensions, PIXLIP GO stands as the first illuminated wall system that can be easily transported in cars.
Modular system that can grow
In developing PIXLIP GO, we made sure that our LIGHTBOXES consist of as few components as possible. This allowed us to achieve maximum modularity. If you already own several LIGHTBOXES, you can connect them to each other, combine them into a continuous LIGHTBOX, or even build LIGHTBOX in sizes that we do not offer by default. Let your creativity run wild.
Expand your lightbox with additional components

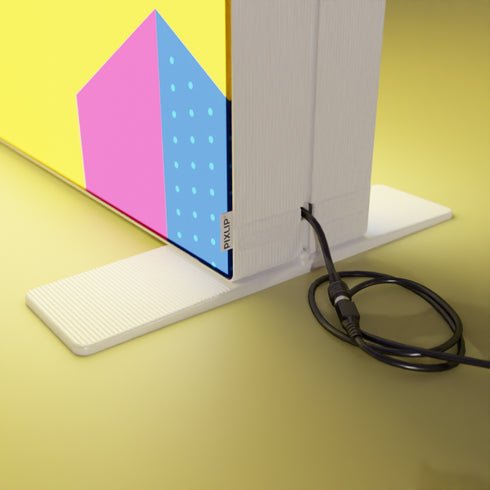

Our PIXLIP GO LIGHTBOXES are equipped with a groove system all around. This groove allows you to connect multiple frames, mount feet and attach counter plates, or add accessories without the need for tools in just a few seconds. This way, you can customize your PIXLIP GO LIGHTBOX exactly to your needs.
DESIGN YOUR OWN EXHIBITION STAND!
The PIXLIP GO CONFIGURATOR creates your booth-stand within minutes.
Additional PIXLIP GO Components
Technical Specifications
Product Size
| Length: | 2000 mm |
| Width: | 2500 mm |
| Height: | 150 mm |
Packaging 1 Size
| Length: | 1200 mm |
| Width: | 220 mm |
| Height: | 425 mm |
| Weight: | 11,5 kg |
Packaging 2 Size
| Length: | 1060 mm |
| Width: | 220 mm |
| Height: | 425 mm |
| Weight: | 12,4 kg |
Materials
| Frames: | Pixlip GO frames are made of ABS plastic with a V0 fire safety certification |
| Prints: | Pixlip GO Prints bestehen aus mit UV oder Sublimation bedrucktem Samba-Green |
| Color: | RAL 9010, pure white |
Electronics
| Input voltage: | 110 - 230V AC |
| LED voltage | 24V DC |
| Power consumption: | Approx. 27W/sqm (27W per LED module) |
| Suitable for outdoor: | No |
LED data
| Light temperature: | 6700K |
| Lumen: | 2320 lm per LED |
| CRI: | 80 |
What's in the box?
| NUMBER: | INDIVIDUAL PARTS: |
| 4x | PIXLIP GO profile 1150mm |
| 4x | PIXLIP GO profile with LED Module 900mm |
| 4x | PIXLIP GO corner connector |
| 3x | PIXLIP GO foot plate |
| 2x | PIXLIP GO click system strut 1225mm |
| 2x | PIXLIP GO strut 977mm |
| 2x | PIXLIP GO strut holder |
| 2x | PIXLIP GO system connector top |
| 1x | PIXLIP GO system connector step |
| 8x | PIXLIP GO printclip |
| 6x | PIXLIP GO sealing cap |
| 1x | PIXLIP GO Power supply unit 120W, 24V |
| 1x | PIXLIP EU plug |
| 2x | PIXLIP GO bag |
FAQs
What are the advantages of PIXLIP GO?
Our PIXLIP GO system is especially perfect for small to medium-sized mobile trade show booths, thanks to four key features:
- PIXLIP illuminates. With the use of LEDs, we make your message shine. You'll get significantly more attention than with conventional systems.
- Thanks to its lightweight and very compact carrying bags, entire trade show booths can be transported in cars.
- The plug-in mechanism of the frames makes the setup completely tool-free and unrivaled in speed.
- With our PIXLIP GO configurator, trade show booths can be created in seconds without any prior knowledge.
What types of PIXLIP GO lightboxes are available?
Our PIXLIP GO system is perfect for small to medium-sized mobile exhibition stands, especially thanks to 3 features:
Due to the low weight and the very compact transport bags, entire exhibition stands can be transported even in passenger cars.
Due to the plug-in mechanism of the light frames, the assembly is completely tool-free and unrivalled fast.
And with our PIXLIP GO configurator, exhibition stands can be put together online in seconds without any prior knowledge.
What is the depth of the PIXLIP GO LIGHTBOX?
What color is the PIXLIP GO frame?
With which electrical voltage do the LEDs run?
What is the power consumption of the PIXLIP GO LIGHTBOX?
What is the light temperature of the GO LIGHTBOX?
How bright is the PIXLIP GO system?
What is the color rendering (CRI/Ra value) of the PIXLIP GO LEDs?
Is it possible to assemble the walls in a larger size?
How big are the transport bags?
1x 200 (180mm x 1040mm x 405mm").
1x 250 (180mm x 1180mm x 405mm).
